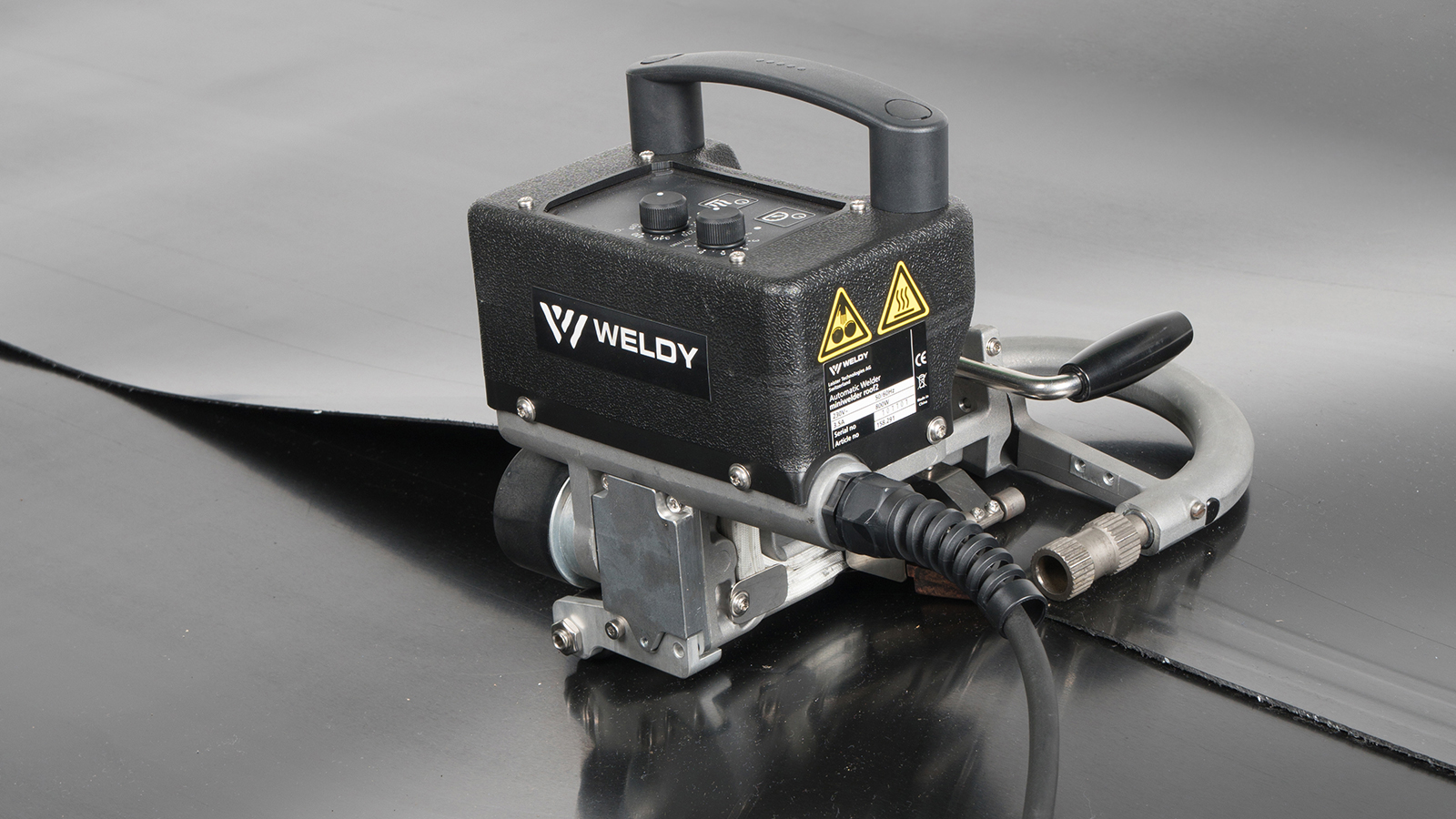

WELDY Mini GEO2 Wedge Welder for Geomemberance

The Weldy GEO2 Wedge Welder is designed for welding geomembranes materials.
Item Code: JK-HW-GEO2
Price:
    Please select the information you wantX
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
set
  • Description
Specifications
The Weldy GEO2 Wedge Welder is designed for welding geomembranes materials. It's a smart mini welder and convenient to use. The wedge welder can weld the geomembranes with wide range thickness that is from 0.1mm to 2mm. The mini geo welder is adopting the advanced technology from Swiss.



Specifications:
• Swiss development & engineering
• Voltage: 220V±10%
• Power: 800W
• Wedge Temperature: 50 – 450°C
• Speed: 0.4 – 8.0m/min
• Welding seam width: 12×2 mm, interior cavity 12
• 20 w/o interior cavity
• Overlap width: 100mm
• Material thickness: 0.1 up to 2.0 mm
• Dimensions (L × W × H): 228 × 228 × 170mm
• Weight: 4.0kg
• Protection class I



Applications:

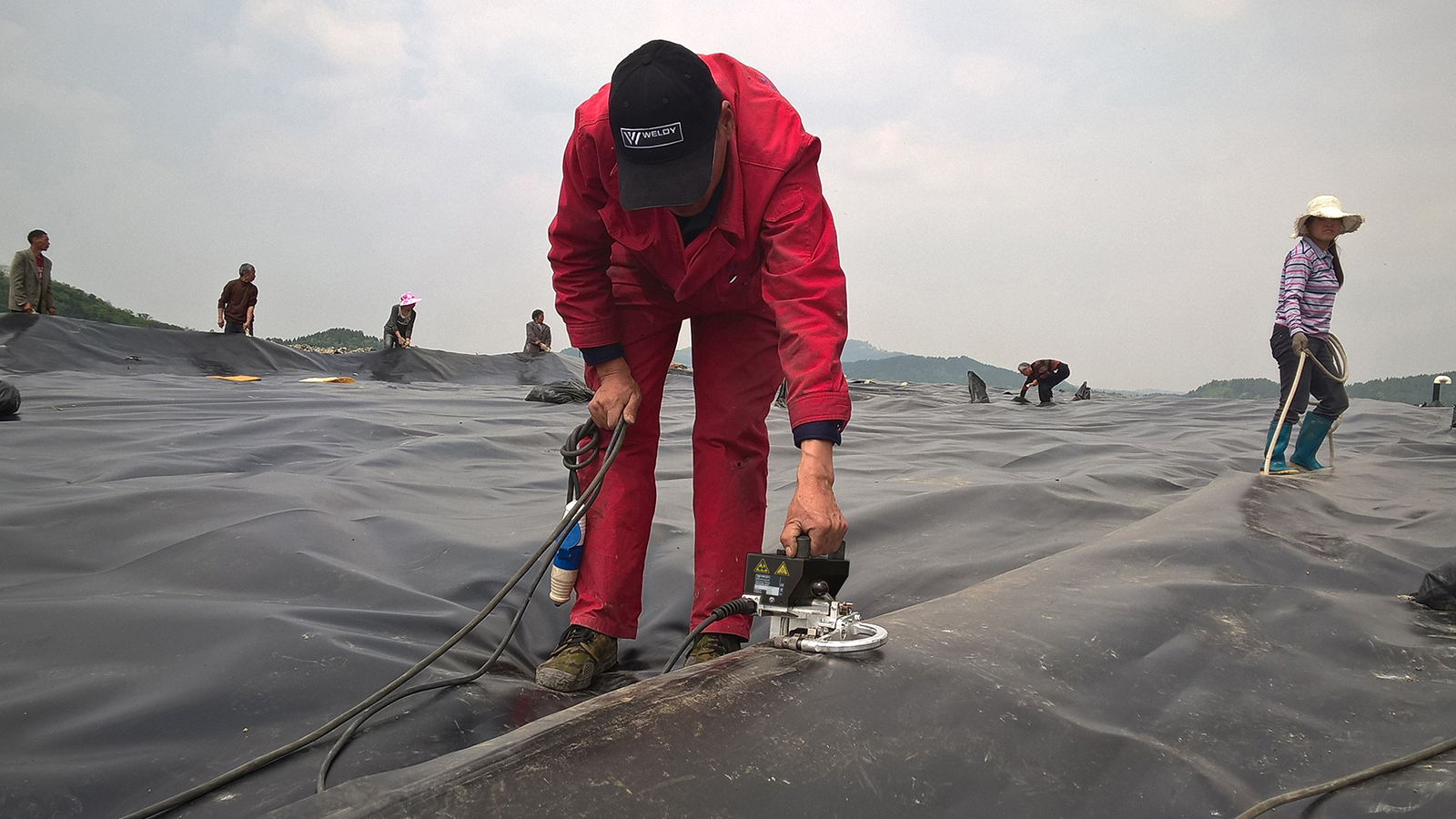

The mini geo2 welder is widely used for kinds of geomembranes with different thickness outdoor engineering.



Packing Details:
Packing Size: 270 x 200 x 360mm
Gross Weight: 6kg
